Aerocell Rail

Product Description

AEROCELL is a closed cell flexible elastomeric foam made from Nitrile Rubber. This material has low thermal conductivity and high water vapour diffusion resistance. It is CFC/HCFC free, dust and fiber free and ensures energy saving. This product meets insulation related testing requirements for Indian raliways, as Aerocell Rail is certified by “ En 45545-2".

Advantages

  • EN 45545-2 certified product
  • High water diffusion
  • FM Approved
  • Superior thermal insulation properties
  • Flexible, durable & fiber free
  • Excellent fire resistance
  • Easy to install & handle

Applications

  • Insulation to prevent condensation and reduce energy loss on HVAC ducts, pipes, tanks & equipments.

Assembly

  • Aerocell can be used together with ALP Aeroflex adhesives (Aerostick) for a complete insulation system.

Product Range

  • Available in plain rolls (sheet) in 19mm and 40mm thickness.

Technical Details

S.No. PROPERTIES VALUES TEST METHOD
1 Insulation Material Closed Cell Elastomeric Nitrile Rubber Foam -

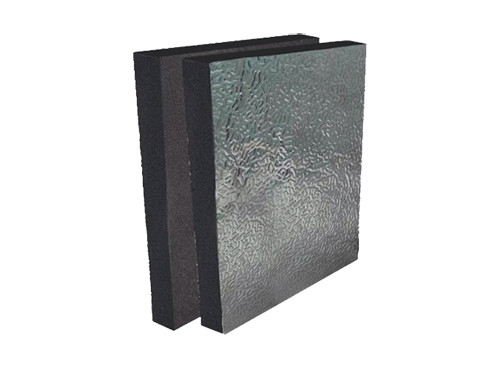

2 Covering Material (Lamination) Laminated on one side with 60 mic. Aluminum foil -
3 Foam Density(Kg/m3) 55±20% ASTM D 1056
4 Thermal Conductivity (k Value) ≤0.040 W/m  °K at 0  °C EN 12667 & EN ISO 14304
5 Service Temperature Max. Servic Temp.   +110  °C  | Min. Surface Temp. -50  °C EN 14706 & EN 14304
6 Water Vapour diffusion resistance index, µ  ≥10000 EN 12086 & EN 13469
7 Reaction to Fire
  Hazard Levels Classification Achieved: HL3, R1 EN 45545-2
    Requirements of R1 HL3 Of EN 45545-2 Observed Results
  CFE(kW/m2) Minimum 20 50 T02 (EN ISO 5658-2)
  MARHE(kW/m2) Maximum 60 12.82 T03.01 (ISO 5660-1:50 kW/m2)
  Ds(4) Maximum 150 35.5 T10.01 (EN ISO 5659-2:50 kW/m2)
  VOF4 Maximum 300 46.6 T10.02 (EN ISO 5659-2:50 kW/m2)
  CITG Maximum 0.75 0.17 T11.01 (EN 17084 Method 1:50 kW/m2)
8 Water Absorptio ≤0.2% ASTM C 1763
