A-Flex Eco Class 1

Product Description

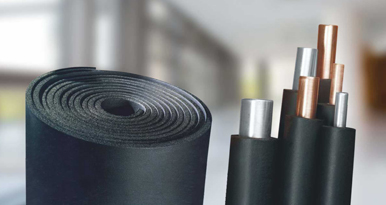

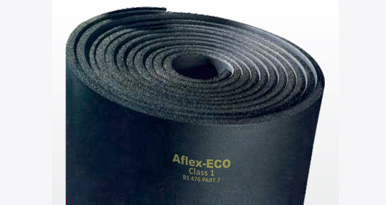

Aflex-ECO is a closed cell flexible elastomeric foam made from Nitrile rubber. This material has low thermal conductivity and high water vapour diffusion resistance. It is CFC/ HCFC free, dust and fiber free. It ensures energy saving in eco-friendly manner. This product meets insulation requirement in diverse fields.


  • Completely closed cell elastomeric nitrile insulation
  • Quick & easy to install with no special tools
  • Flexible, durable & easy to handle
  • Excellent compression strength due to closed cell structure Superior thermal insulation properties over other open or semi-closed cell insulation material
  • Very high moisture diffusion resistance & no cladding is required if installed inside
  • Class 1 fire rating as per BS 476 part 7


Insulation to prevent condensation, reduce energy losses and protection against mechanical damage on HVAC ducts/ pipes, used in Airport, Hospitals, Factories, Offices, Malls, Duct, Chiller System.


Aflex-Eco can be used together with Aerostick adhesives as a complete insulation system.

Size Availability

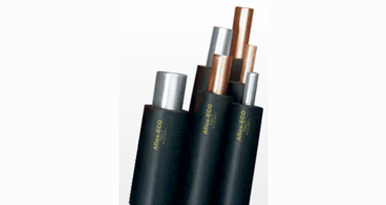

  • 6mm, 9mm, 13mm, 19mm, 25mm & 32mm wall thickness to fit all standard copper and iron pipes diameters from 6mm (½") to 108mm (3¼").
  • Other size available on request
  • Tube length: 1.83 meters (6ft).
  • Available in special sizes & long coils on request

Technical Details

Temperature Range -40°C to 105°C
Density (Kg/m3) 40 to 60 ASTM-D-1056
Thermal conductivity W/m.K ≤0.035 W/m°K at 10°C; ≤0.036 W/m°K at 20°C
≤0.037 W/m°K at 30°C; ≤0.038 W/m°K at 40°C
ASTM-C-518 & ISO 8301
Water Vapour diffusion resistance Index ≥7000 ASTM E 96
Ecological Data No asbestos, No HCFC - CFC,
No Formaldehyde - Cd-Hg etc.
Cell Structure Closed Cell
Ozone Resistance Very Good
Odour Negligible
Reaction to Fire
a) Fire performance acc. to building regulation Class 1 Bs476 Part 7
d) Rate of burning (Vertical Position) Class V-0 UL 94 : 1997
e) Practical fire behavior Self-Extinguishing, does not drip and does not spread flames ASTM D 635-18
