Aerocell with AM

Product Description

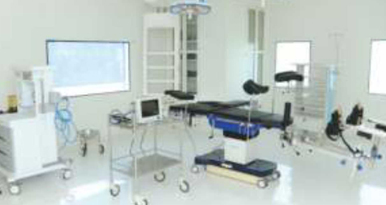

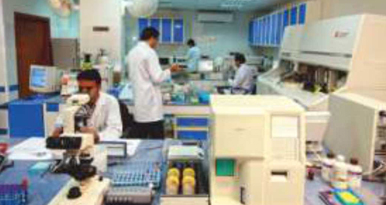

Aerocell-AM (Bio-Flex), the new range of anti-microbial cellular elastomeric nitrile rubber insulation from ALP Aeroflex which has regularly displayed an ability to innovate and bring a range of quality rubber foam products. Continuing in the same spirit to innovate, upgrade and expand, the company has introduced the anti-microbial closed cell elastomeric nitrile insulation. The improved cell structure of Aerocell-AM has enhanced thermal insulation properties, superior protection against microbes, fungi, bacteria and improved resistance to moisture and vapour transmission. This is a light weight flexible foam material designed for clean room insulation applications such as the pharmaceutical industries, Hospitals, Labs to name a few.


  • Built-in anti-microbial product protection
  • High water vapor diffusion resistance
  • Low thermal conductivity
  • Easy to install and handle
  • Completely closed cell structure
  • Flexible and elastomeric


  • Insulation to prevent condensation, reduce energy losses and protection against microbial contamination for enhanced indoor air quality.


Aerocell-AM can be used together with ALP Aeroflex adhesives (Aerostick) for a complete insulation system.

Product Range

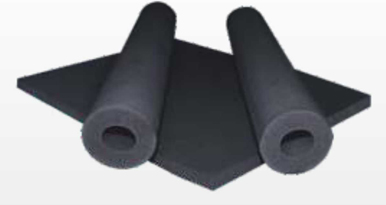

Available in plain and self-adhesive rolls (sheets) in 6, 9, 13, 16, 19, 25, 32 mm thickness of 1000, 1200 mm wide rolls.

Technical Details

Thermal Conductivity W/m.K ≤ 0.035 W/m°K @10°C; ≤ 0.036 W/m°K @20°C ≤ 0.037 W/m°K @30°C; ≤ 0.038 W/m°K @40°C ASTM-C-518
Water Vapour diffusion resistance Index ≥10000 ASTM E-96
Cell Structure Closed Cell ASTM C 518
Density 40 to 60 Kg/M3
Temperature Range* -40°C to + 105°C
Resistance to fungi No Fungal growth ASTM G-21
Resistance to bacteria No Bacterial growth ASTM G 2180
Ecological Data No asbestos, No HCFC - CFC, No Formaldehyde - Cd-Hg etc.
Ozone Resistance Very Good
Odour Negligible
Reaction to Fire
a) Fire performance according to building regulation Class 0 Bs476 Part 6
b) Surface flame spread Class 1 Bs476 Part 7 : 1997
c) Fire Propagation I<12 & i1<6 Bs476 Part 6 : 1989
d) Rate of burning (Vertical Position) Class V-0 UL 94 : 1997
e) Practical fire behavior Self-Extinguishing, does not drip and does not spread flames ASTM D 635-18
